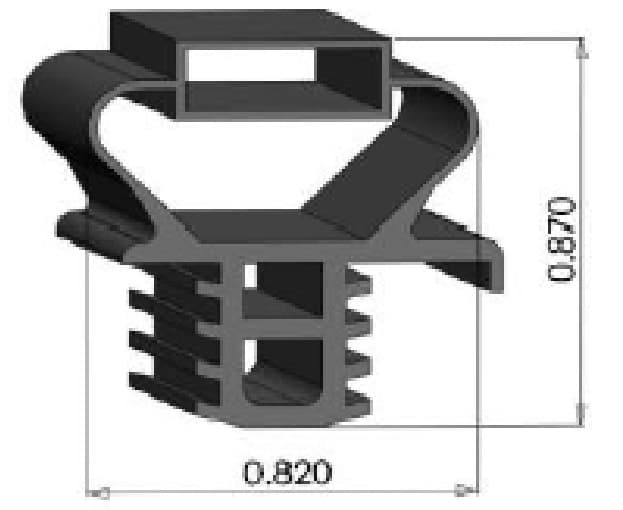

GEM 1
Used on Delfield and Randell units. On Delfield units this dart may be too tall, if that’s the case you can use some silicone.
Get a quote →OEM Gaskets
Explore Original Equipment (OEM) Gaskets
We manufacture custom OEM gaskets for all commercial refrigeration products. All gaskets come with a 90 day warranty and are 100% American made. Send the old one — we match it.

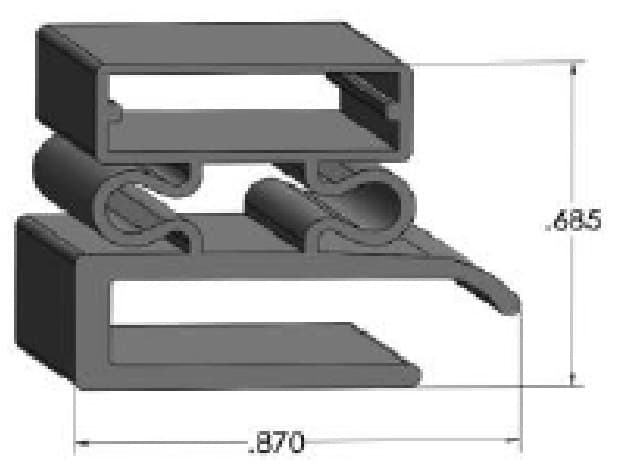

GEM 2
Used on Randell, Delfield, Leer and more. This profile looks a lot like the 1059 Profile, but the difference will be screws under the flap holding the gasket in place while the 1059 has the barb.
Get a quote →

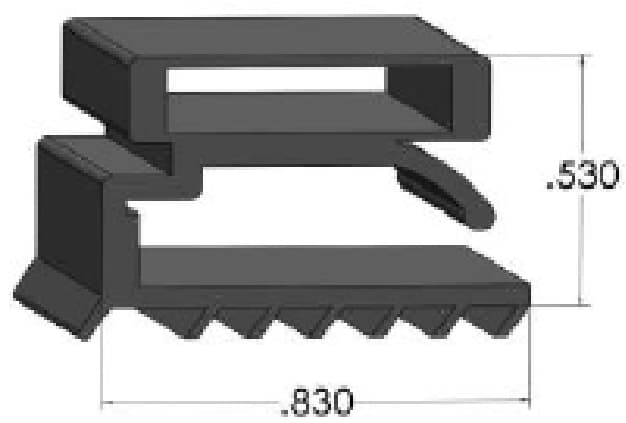

GEM 3
Common used on drawer and smaller under counter reach in units such as American Panel, Bally, Brown, Howard, Schaefer, Kolpak, and Vollrath units. We prefer to substitute a profile 449 or 2196 gasket.
Get a quote →

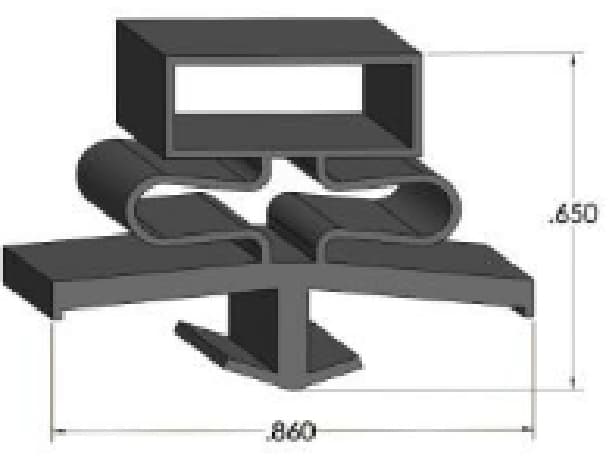

GEM 4
This is the second most popular PVC dart style gasket. Used on a wide variety of drawer and reach-in units including True, Berverage Air, and Perlick Units.
Get a quote →

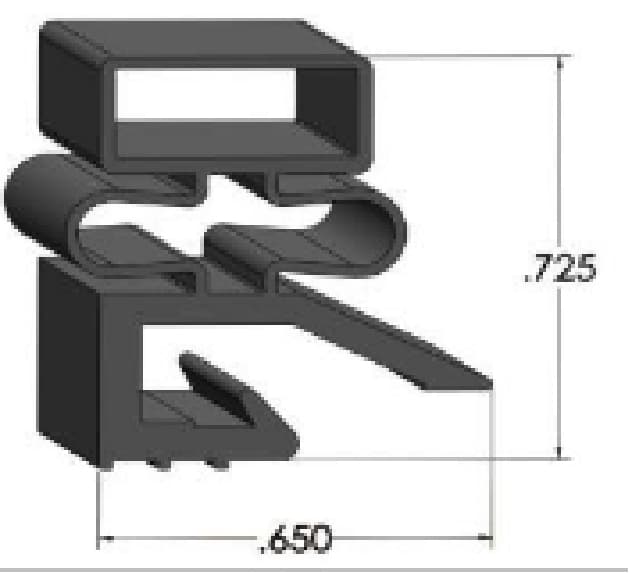

GEM 5
Common gasket used on Hobart units and units, which require a low profile gasket. This profile is often found on Hobart and Vulcan-Hart units.
Get a quote →

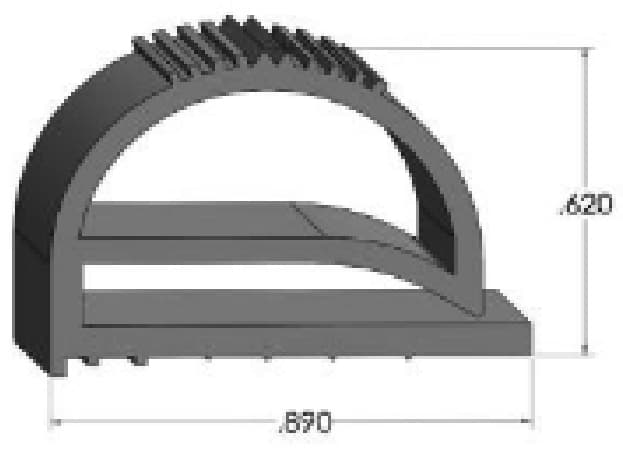

GEM 7
Used on several style refrigeration drawers and doors. Since this profile doesn’t have a magnet, it is used on doors that have a latch to keep them closed.
Get a quote →

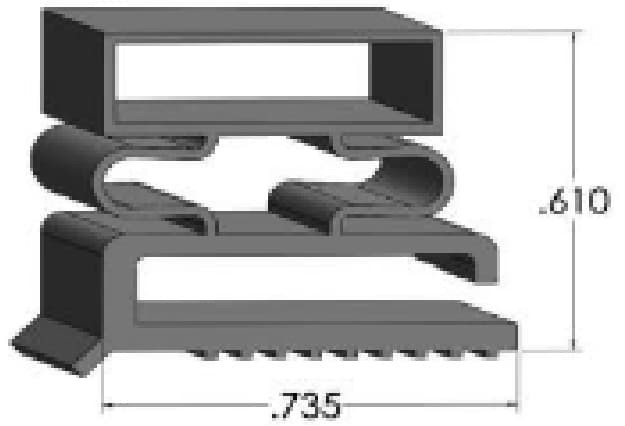

GEM 8
Universal Screw-Down gasket. Used on many manufactures of drawer, reach-in and walk-in units. It is very similar to the 1094 profile, which doesn’t have a flexible bellows and makes the 449 profile a taller gasket.
Get a quote →

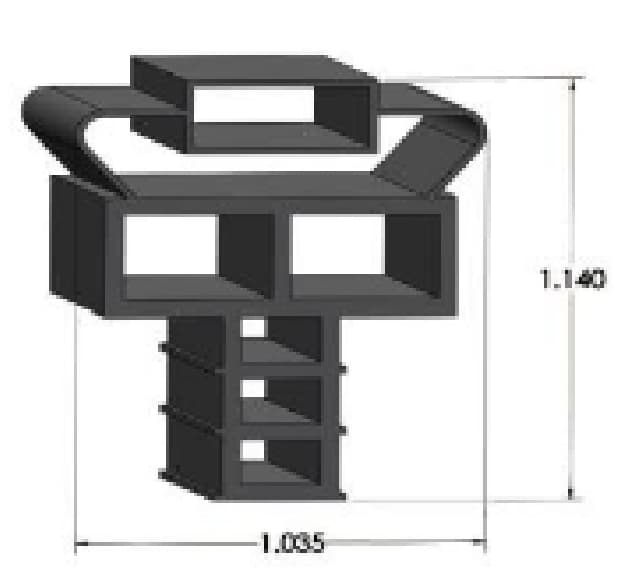

GEM 9
Gasket can be manufactured 1/2″ to 3/4″ small for a great fit. Used on Randell units.
Get a quote →

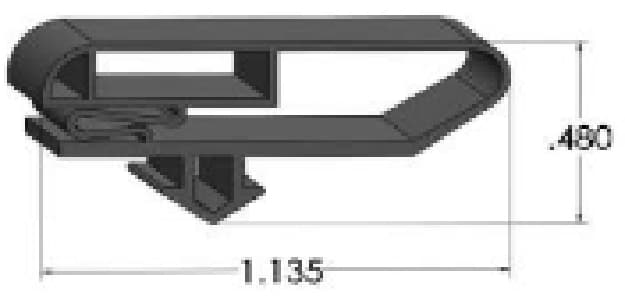

GEM 11
Used on Anthony glass doors. This is commonly referred to as Anthony’s “Air Cell” gaskets due to its wider air pocket when compared to the 2263 profile “anvil” style gasket.
Get a quote →

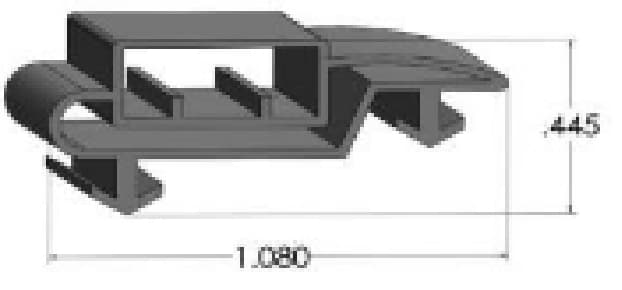

GEM 12
Used on Anthony model 1000 coolers manufactured PRIOR to November 1981. Similar to the 3597 profile that has 1 dart on its back, the 3598 has 2 separate darts on its back. This is one of our most popular profiles.
Get a quote →

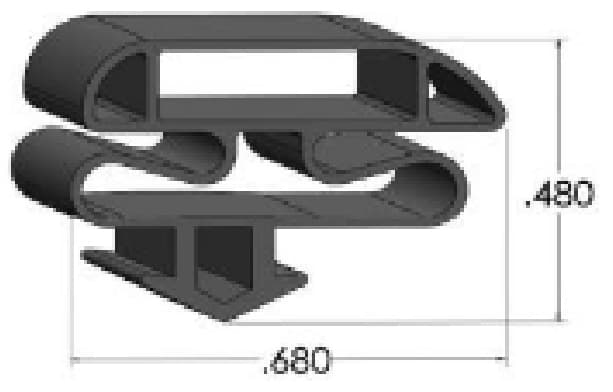

GEM 13
Used on Anthony glass doors as well as many manufacturers that utilize Anthony style glass doors.
Get a quote →

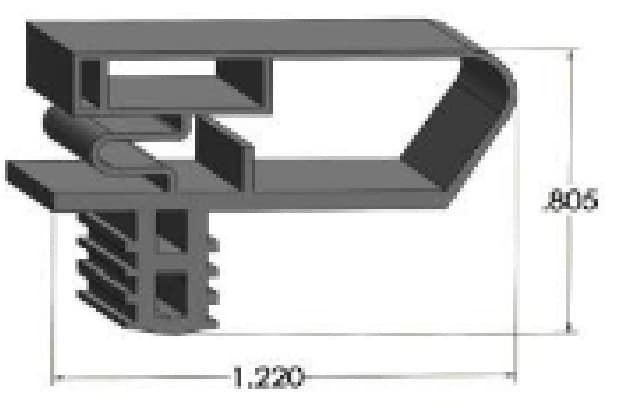

GEM 14
Used on Hussmann, Foster, Hobart, and other units with wide tracks. Similar to the 101 profile.
Get a quote →

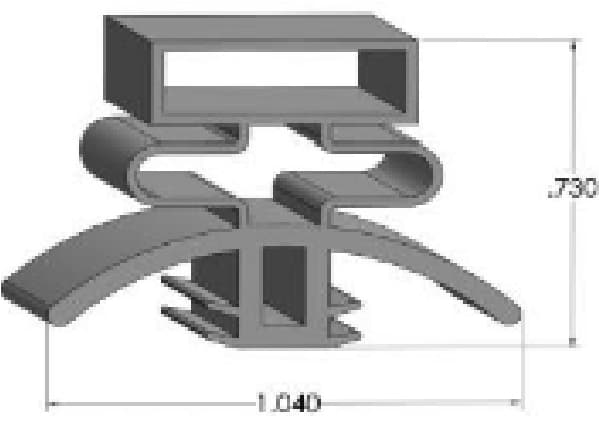

GEM 16
Used on glass display doors on units such as Ardco, McCall, Hobart, Nor-Lake, Pinnacle and more.
Get a quote →

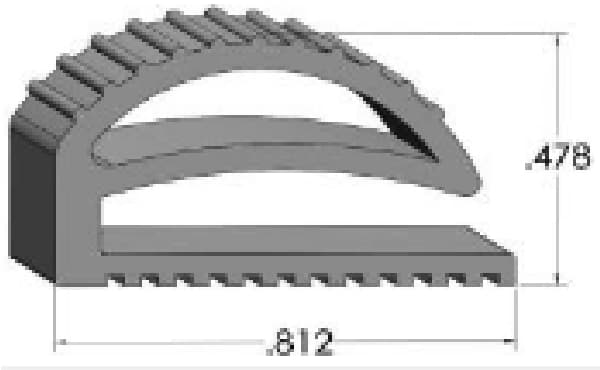

GEM 20
Compression style screw-on gasket used on several style refrigeration drawers and doors. This profile doesn’t have a magnet.
Get a quote →

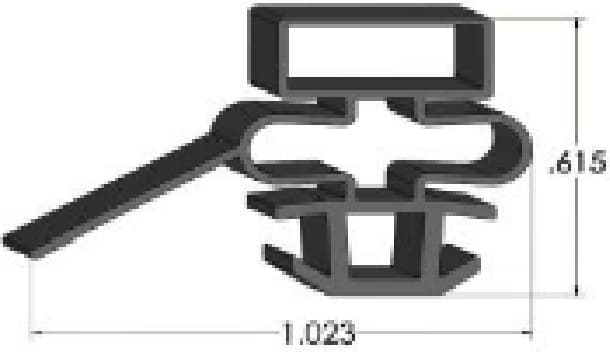

GEM 21
Used on various reach-in units made by Turbo-air and Masterbilt and some other smaller manufacturers (typically built in Taiwan or China).
Get a quote →

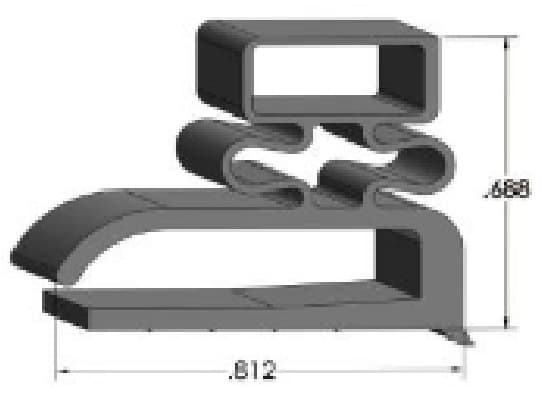

GEM 22
The most universal gasket in the business! . Old walk-ins, Delfield, Randell, Leer, etc. It’s wide magnet holds well in a variety of situations.
Get a quote →

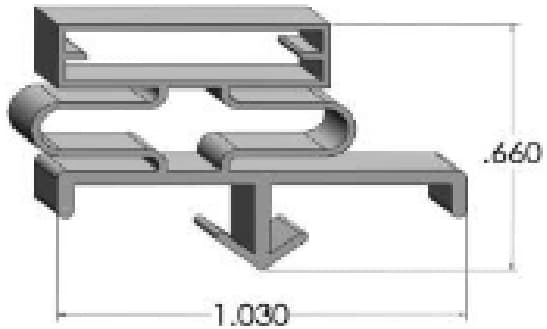

GEM 24
Used almost exclusively on Victory units. Similar to the 516 profile, only this one is slightly wider and taller.
Get a quote →

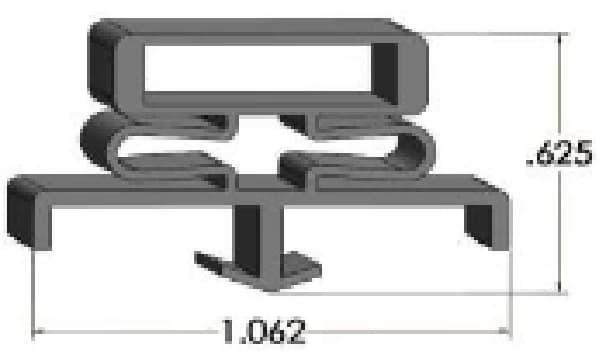

GEM 26
A very popular gasket used on many brands including True. Similar to the 516 profile, but the magnet and bellows are centered.
Get a quote →

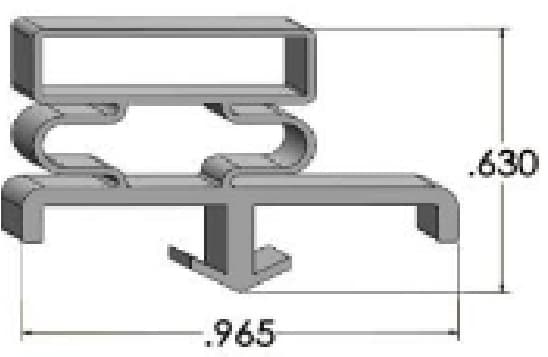

GEM 27
Very common (ours can replace a 508 little profile) Used on Delfield and many other reach-in doors. Similar to 508 little and 508 profiles.
Get a quote →
GEM 29
We usually substitute a profile 516 for this gasket. Just make sure that you deduct 1/2″ from the outside measurement of the old gasket otherwise the dart will not match up to the track.
Get a quote →

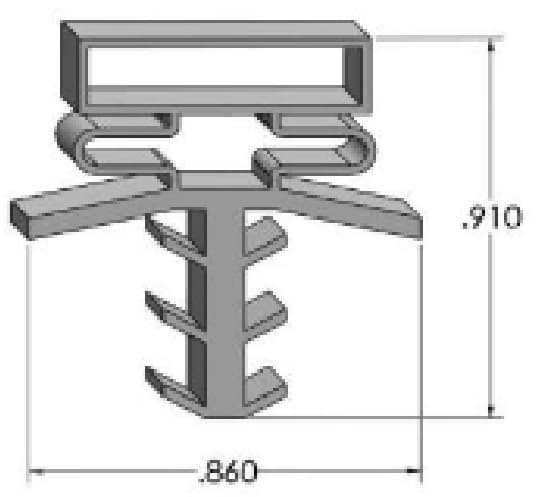

GEM 30
Used on Randell, Delfield, Bally, and WA Brown units. Due to its height profile, shimming may be necessary particularly on Delfield units.
Get a quote →

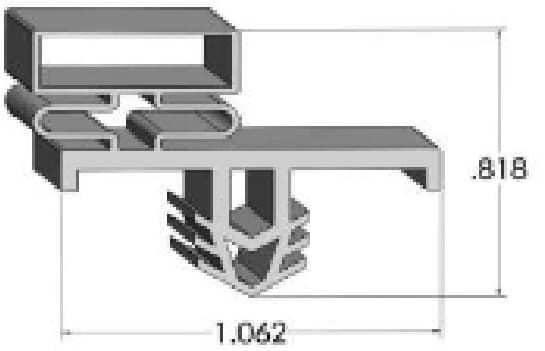

GEM 31
Used on Delfield units. Similar to the 516 profile from the top, but the back side (dart) is wider.
Get a quote →

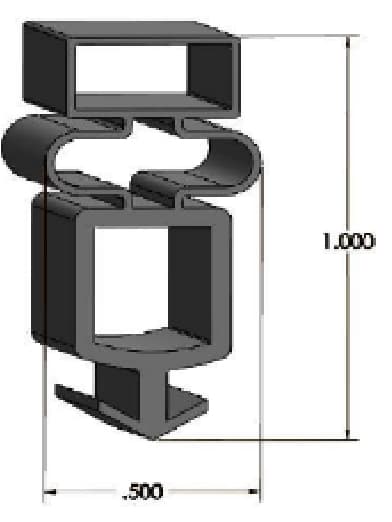

GEM 32
A very popular gasket used on many units including True Manufacturing. Often found on full sized reach-in units.
Get a quote →

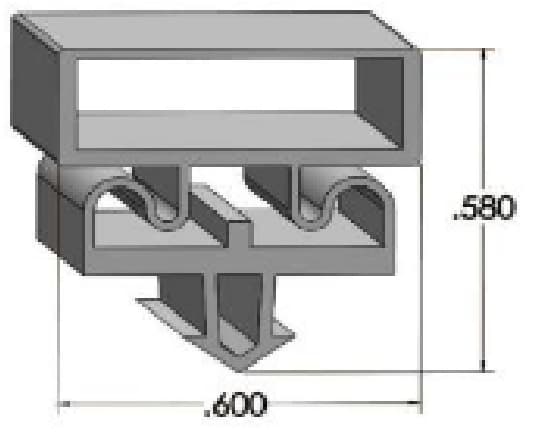

GEM 33
Used on Anthony, Howard, Hussman, Kelvinator, Leer, Masterbilt, Nor-Lake, Puffer Hubbard, Schaefer, Tyler, Utility, Victory, and Vulcan Hart.
Get a quote →
GEM 34
Similar to 508 little and 516 profiles except that this is much wider and taller. This gasket requires a rubber hammer for installation.
Get a quote →
Not sure what you need?
Text us a photo of the door and a tape measure. We'll take it from there.
